Double Action Hydraulic Press Manufacturer in india

  • Home
  • Deep Draw Hydraulic Press
Enquire Now ! View Product

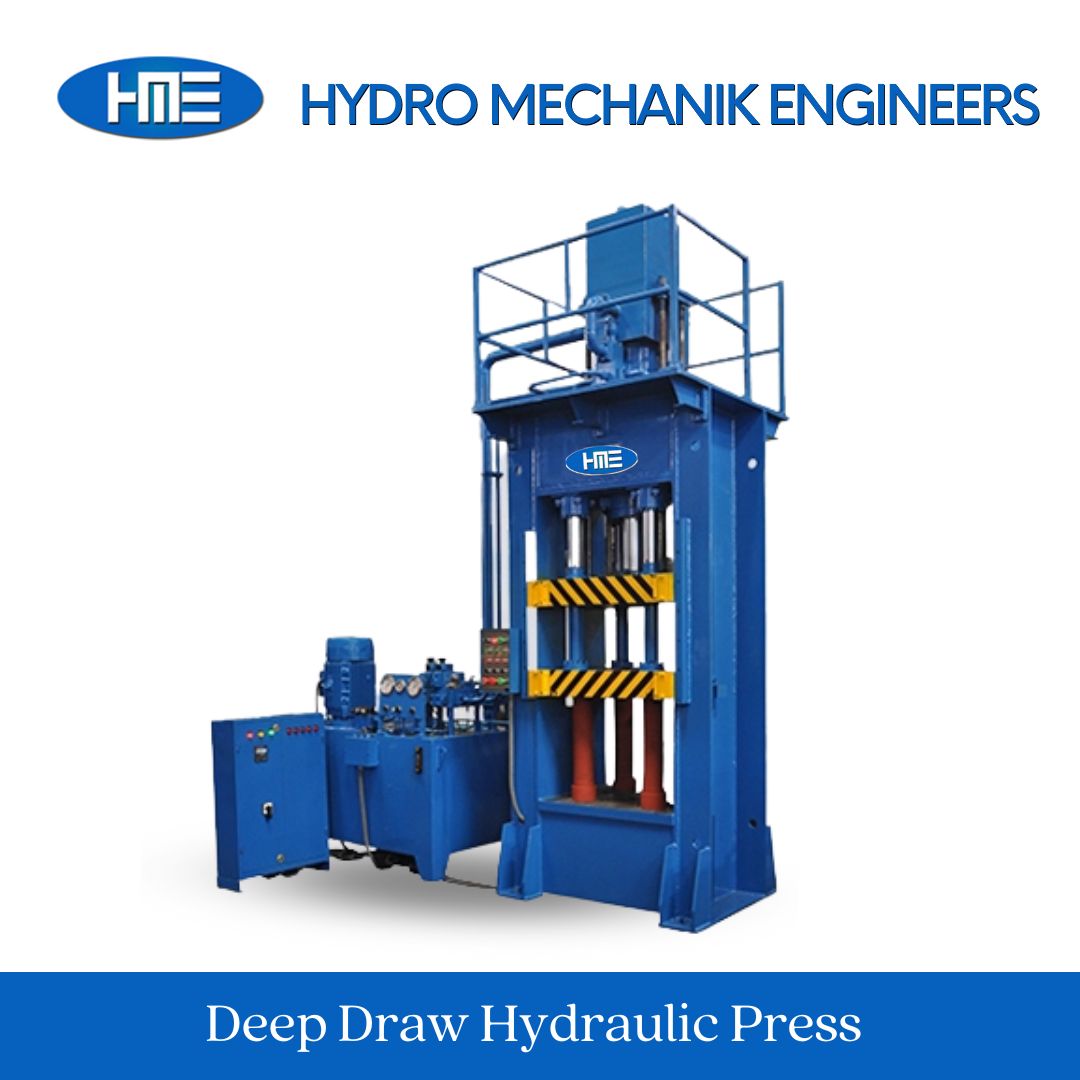

Double Action Hydraulic Press Manufacturer in india

Product Description

We manufacturer Double action Deep Draw Hydraulic Presses extensively used in sheet metal drawing and forming industry. Our above mentioned standard product range is readily used in Utensil manufacturing, Auto Component manufacturing, LPG cylinder manufacturing, Railways Parts, Sanitary manufacturing to name a few.

Sailet Features:-

  • Machine frames are fabricated using High Quality Steel Plates( as per IS 2062 Standards) and is designed using latest design tools including AutoCad, Solidworks, FEA analysis etc.
  • Our machines are finely machined and accuracy is tested as per the JIS-B-6403 accuracy standards matching international standards
  • Hydraulic Cylinders and Rams are finely machined with maximum safety factor and Rams are induction hardened and Hard Chrome plated.
  • Hydraulic Cylinders and Rams are finely machined with maximum safety factor and Rams are induction hardened and Hard Chrome plated.
  • Hydraulic Cylinders and Rams are finely machined with maximum safety factor and Rams are induction hardened and Hard Chrome plated.

Technical Specification

Size 24" 28" 36" 42" 42" 60" 72" 84"
Main Cylinder Capacity(Ton) 40 50 90 100 150 200 250 300
Blank Holding Cylinder 30 50 80 60 80 100 120 160
Blank Holder Opening(Ton) 330 380 480 560 690 780 950 1080
Working Area (mm) 510*600 700*750 900*930 900*1030 1100*1250 1500*1150 1650*1800 2020*1850
Daylight (Min.) 400* 400 450 450 625 680 750 900
Daylight (Max.) 600 700 800 800 800 1230 1350 1350
Speed mm/sec. (Approach) 120 90 120 120 110 100 100 100
Speed mm/sec. (Pressing) 34 32 24 22 20 22 16 15
Speed mm/sec. (Return) 150 90 150 120 150 85 85 80
Power HP 15+5 30 30+5 30+5 30+15+5 60+5 60+5 60+5
Circle Size (Inches) 24 28 35 41 48 58 68 80
Depth of Draw (Inches) 10 13 14 16 17 21 24 27
