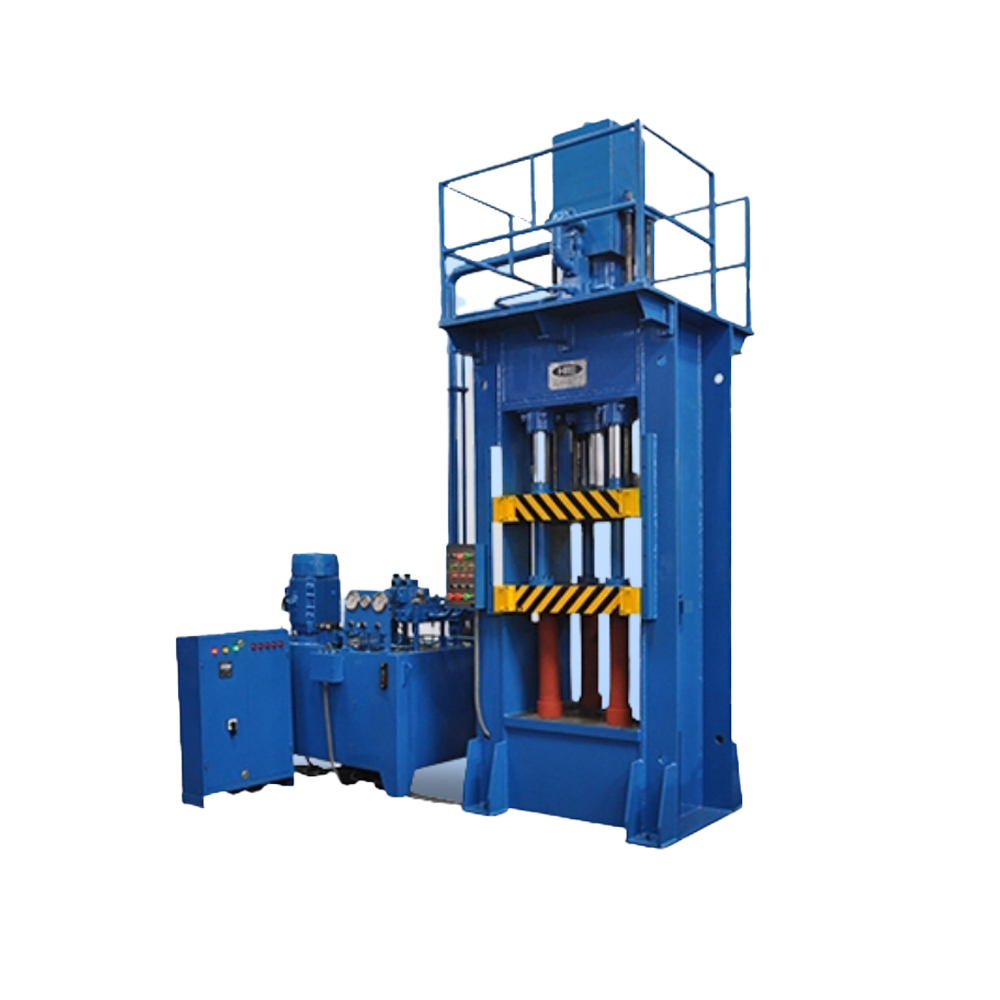

Hydraulic Press For Stainless Steel Utensil

Enquire Now ! View Product

MODEL	HME-SS-780-28"	HME-SS-930-36"	HME-SS-1250-50"	HME-SS-1550-60"
Main cylinder capacity (Ton)	140	180	300	400
Blank Holding Cylinder (Ton)	120	150	250	350
Working Pressure(Kg/cm2)	285	292	280	286
Working Area (mm)	780x780	900x930	1250x1300	1500x1550
Blank Holder Opening (mm)	380	480	660	780
Daylight Min.(mm) Max.	500-850	600-950	650-1100	750-1250
Speed Forward(mm Pressing/sec) Return	90-14-120	100-16-150	90-13-90	110-10-110
Power Required(HP)	30+5	30+15+5	60+5	60+5
Circle Size/Thickness (inch/mm)	28"/2	36"/2	50"/2.5	60"/3
Depth Of Draw (inch/mm)	10"/280	11"/280	14"/375	17"/430
