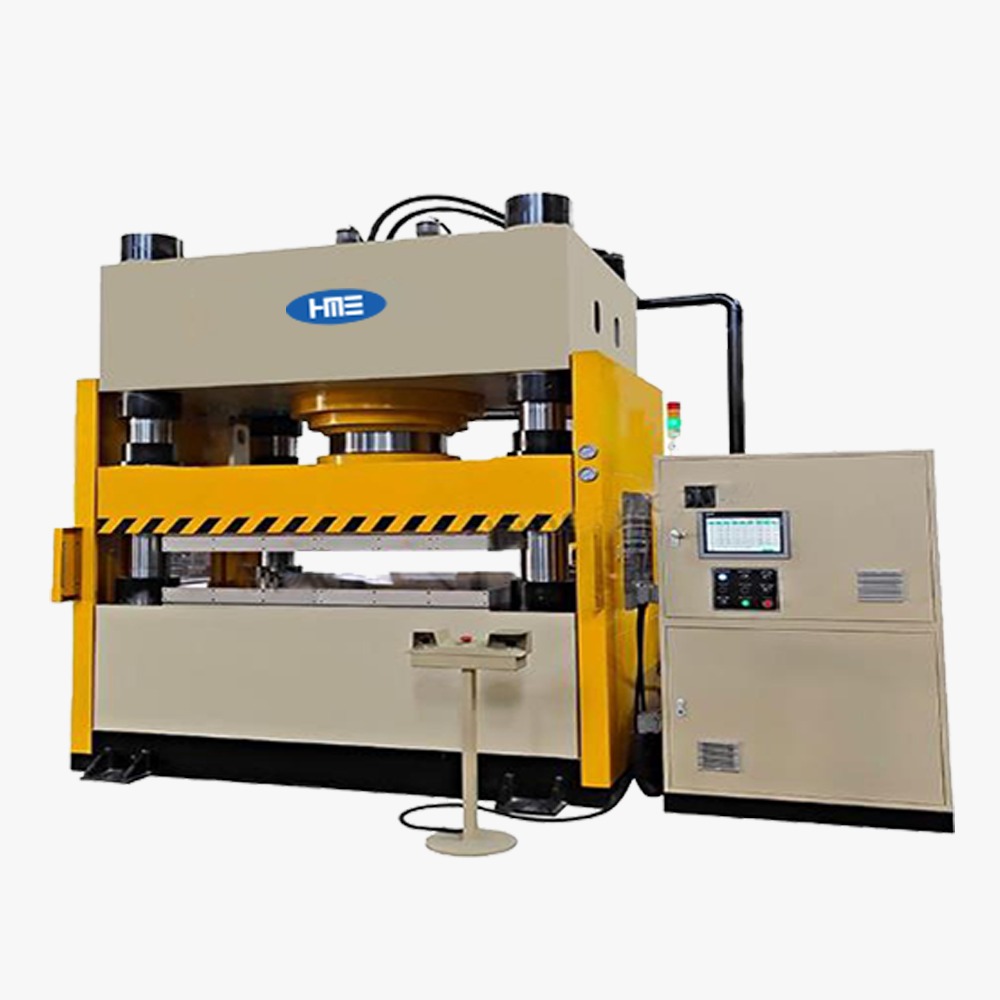

Rubber Compression Moulding Press Manufacturer in India

Rubber Compression Moulding Press Manufacturer

Rubber Compression Moulding Press Manufacturer

Product Description

We HYDRO MECHANIK ENGINEER are manufacturer of compression molding presses and SPM hydraulic presses employed in various sectors of industry.

Sailet Features:-

  • We are ISO 9001:2015 approved company and follow strict international parameters for designing and manufacturing of rugged and precise machinery installed in high production unit.
  • HME Compression molding is one of the most cost-effective hot forming method for molding complex, high-strength fiber-reinforced plastics, metal alloys, composites, and rubber.
  • HME compression molding press features with heavy duty multi-post frame structure. The heating system is optional in between either electric, oil or steam heating
  • Water cooled platens are available to fast cooling down the workpiece for hand manipulation.
  • Our compression molding presses are used to produce an extensive variety of innovative automotive, aerospace, industrial, and consumer products. Our presses are known for robust design. Close control of movement and precise control of pressure required.

Technical Specification

MODEL HME-50T HME-65T HME-80T HME-100T HME-150T HME-200T HME-300T HME-400T HME-700T
Clamping Force(Ton) 50 65 80 100 150 200 300 400 700
Plate Size(mm) 350x380 350x380 430x490 500x560 510x510 600x620 730x730 900x900 1200x1200
Piston Diameter(mm) 180 200 230 270 310 355 430 500 660
Piston Stroke (mm) 380 380 380 380 320/420 480 360/600 360/630 760
Space Between Tie Bar (mm) 395x220 430x200 475x300 575x345 550x300 675x365 795x455 970x580 1360x800
Daylight (Max.) 500 500 500 550 550 650 700 750 1000
Oil Hydraulic System(HP) 5 5 5 7.5 7.5 10 15 20 25
Platen Heating Capacity (Kw) 4.8 4.8 7.4 9.8 9.2 14.8 21 35.2 76
System Pressure(kg/cm²) 210 210 210 210 210 210 210 210 210
Oil Tank Capacity(Liters) 250 250 250 350 350 430 470 560 700
